Quick Change QA/K Style (Coolant Surround Tap)

Tap Adapters QA/K 1 Style – Shank Taps

Description

Tap Size Range

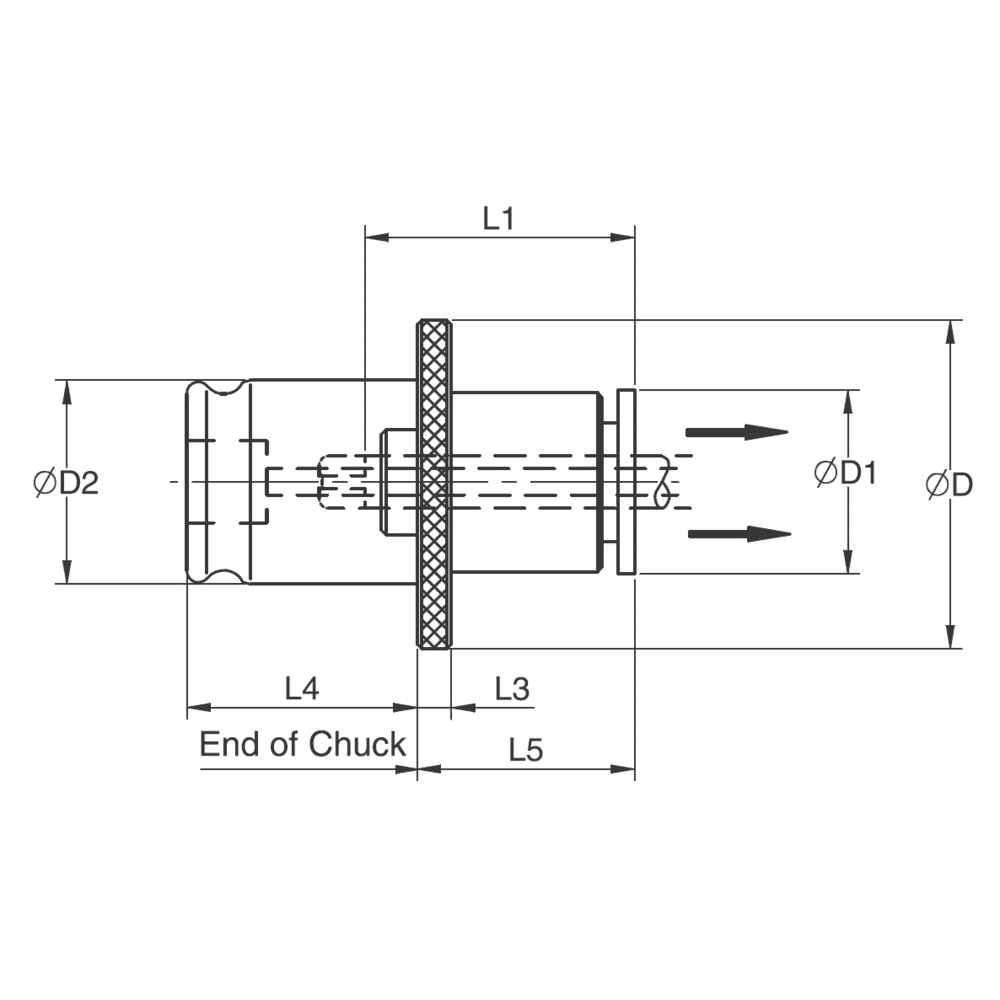

Dimension (mm/inch)

Inch

Metric

ØD

ØD1

ØD2

QA-IK 1

#0-9/16″

M3-M12

1.181

0.748

0.669

0.157

0.846

0.680

Cat. no.: N/A Category: Quick Change QA/K Style (Coolant Surround Tap)

Available Options

Cat. no.	Size Inch	Size Metric	Shank Dia.	Shank Sq.	Quantity
B40100104	#0 - #6	M3	0.141"	0.110"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100148	#8	M4	0.168"	0.131"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100187	#10	M4.5 - M5	0.194"	0.152"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100212	#12		0.220"	0.165"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100266	1/4"	M6 - M6.5	0.255"	0.191"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100173	1/4" Sm	M6 - M6.5	0.185"	0.138"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100324	5/16"	M7 - M8	0.318"	0.238"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100386	3/8"	M10	0.381"	0.286"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100330	7/16"		0.323"	0.242"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100366	1/2"	M12 - M12.5	0.367"	0.275"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100402	9/16"	M14	0.429"	0.322"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100305	1/8"NPT	SM. Shank	0.313"	0.234"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100412	1/8"NPT	Lg. Shank	0.437"	0.328"	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100091		DIN 371, M3	3.5 mm	2.7 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100151		DIN 371, M4	4.5 mm	3.4 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100232		DIN 371 M5 & DIN 371 M6 & DIN 376 M8	6.0 mm	4.9 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100274		DIN 371, M7	7.0 mm	5.5 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100310		DIN 371, M8	8.0 mm	6.2 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100389		DIN 371, M10	10.0 mm	8.0 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100274		DIN 376, M10	7.0 mm	5.5 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100348		DIN 376, M12	9.0 mm	7.0 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity
B40100408		DIN 376, M14	11.0 mm	9.0 mm	Tap Adapters QA/K 1 Style - Shank Taps quantity

Tap Adapters QA/K 1 Style – Shank Taps

Available Options
