Tap Adapters QA/IK3 Style Shank Taps
Tap Adapters QA/IK3 Style Shank Taps - Image 2

Tap Adapters QA/IK3 Style Shank Taps

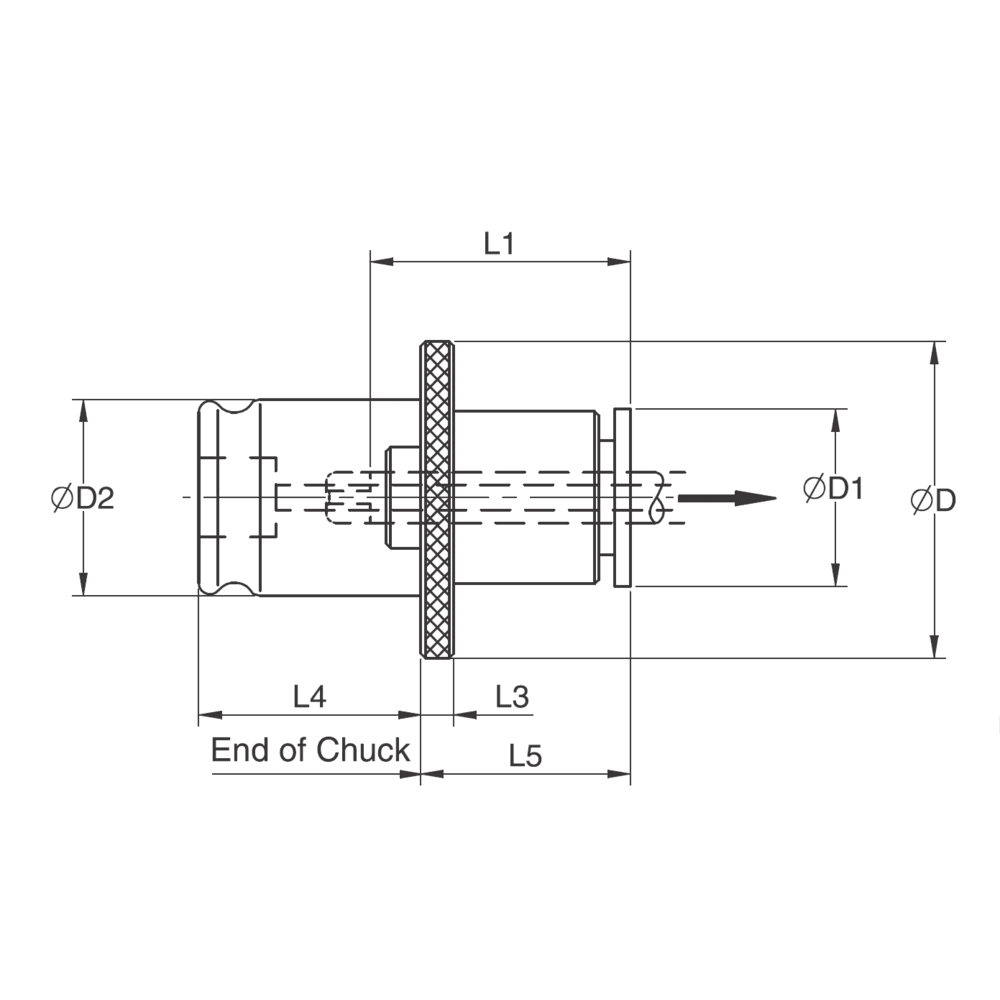

Description Tap Size Range Dimension (mm/inch)
Inch Metric ØD ØD1 ØD2 L1 L3 L4 L5
QA-IK 3 13/16″-1-3/8″ M14-M33 2.760 1.889 1.889 1.732 0.236 2.185 1.600
Cat. no.: N/A Category:

Available Options

Cat. no.Size InchSize MetricShank Dia.Shank Sq.StockPriceQuantity
A4030050513/16"M200.652"0.489"
A403005167/8"M220.697"0.523"
A4030055015/16"M240.760"0.570"
A403005641?M250.800"0.600"
A403005881-1/8"-0.896"0.672"
A403006251-1/4"M301.021"0.766"
A403006621-3/8"M331.108"0.831"
A403005213/8"NPT-0.700"0.531"
A403005101/2"NPT-0.687"0.515"
A403005963/4"NPT-0.906"0.679"
A403006691"NPT-1.125"0.843"
A40300408DIN 376, M1411.0 mm9.0 mm
A40300430DIN 376, M1612.0 mm9.0 mm
A40300465DIN 376, M1814.0 mm11.0 mm
A40300491DIN 376, M2016.0 mm12.0 mm
A40300531DIN 376, M22 & 2418.0 mm14.5 mm
A40300556DIN 376, M2720.0 mm16.0 mm
A40300578DIN 376, M3022.0 mm18.0 mm
A40300615DIN 376, M3325.0 mm20.0 mm
A40300645DIN 376, M3628.0 mm20.0 mm
