PTI Reduction Adaptor
PTI Reduction Adaptor
Available Options

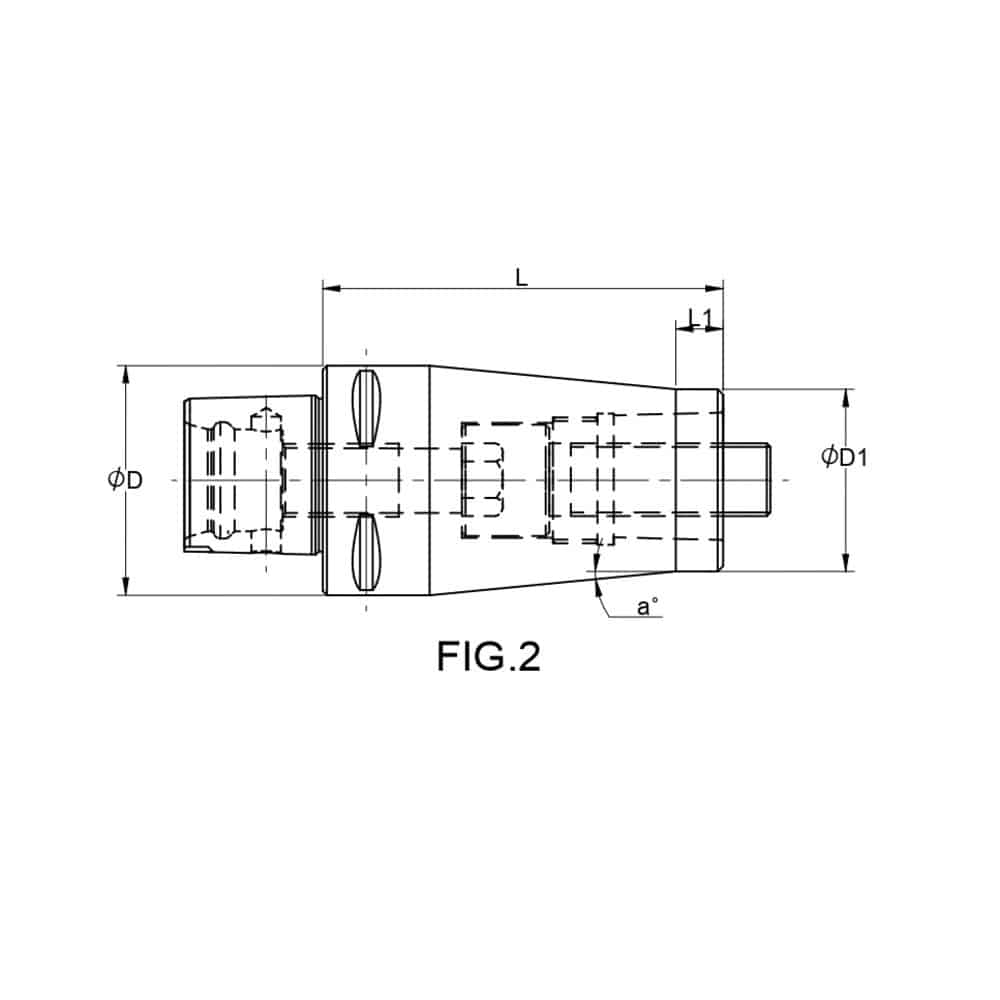

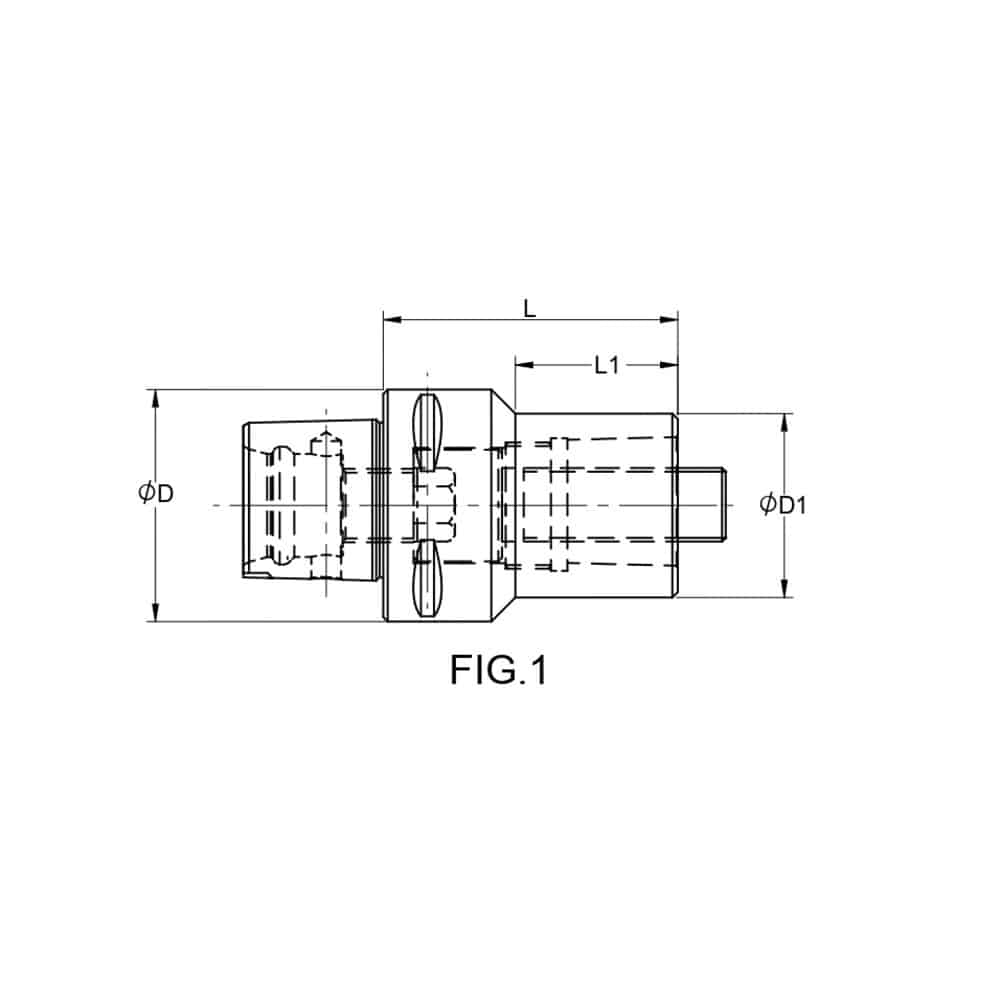

| Cat. no. | Description | Fig. | Adaptor | ØD (mm) | ØD1 (mm) | L (mm) | L1 (mm) | A | Weight | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 214311 | PTI40-PTI32-RA 55 | 1 | PTI32 | 40 | 32 | 55 | 31 | - | 0.5 | ||||
| 214314 | PTI40-PTI32-RA 70 | 2 | PTI32 | 40 | 32 | 70 | 12 | 6° | 0.6 | ||||
| 215312 | PTI50-PTI32-RA 60 | 1 | PTI32 | 50 | 32 | 60 | 35 | - | 0.6 | ||||
| 215413 | PTI50-PTI40-RA 65 | 1 | PTI40 | 50 | 40 | 65 | 40 | - | 0.8 | ||||
| 215417 | PTI50-PTI40-RA 85 | 2 | PTI40 | 50 | 40 | 85 | 12 | 5.4° | 1.1 | ||||
| 216314 | PTI63-PTI32-RA 70 | 1 | PTI32 | 63 | 32 | 70 | 39 | - | 1.1 | ||||
| 216416 | PTI63-PTI40-RA 80 | 1 | PTI40 | 63 | 40 | 80 | 51.5 | - | 1.2 | ||||
| 216516 | PTI63-PTI50-RA 80 | 1 | PTI50 | 63 | 50 | 80 | 51.5 | - | 1.5 | ||||
| 216522 | PTI63-PTI50-RA 110 | 2 | PTI50 | 63 | 50 | 110 | 12 | 4.9° | 2.2 | ||||
| 218312 | PTI80-PTI32-RA 60 | 1 | PTI32 | 80 | 32 | 60 | 29.5 | - | 1.7 | ||||
| 218414 | PTI80-PTI40-RA 70 | 1 | PTI40 | 80 | 40 | 70 | 36.5 | - | 1.9 | ||||
| 218516 | PTI80-PTI50-RA 80 | 1 | PTI50 | 80 | 50 | 80 | 49.5 | - | 2.2 | ||||
| 218616 | PTI80-PTI63-RA 80 | 1 | PTI63 | 80 | 63 | 80 | 53 | - | 2.5 | ||||
| 218624 | PTI80-PTI63-RA 120 | 2 | PTI63 | 80 | 63 | 120 | 12 | 6.2° | 4 |
